I. Core Image Quality Performance

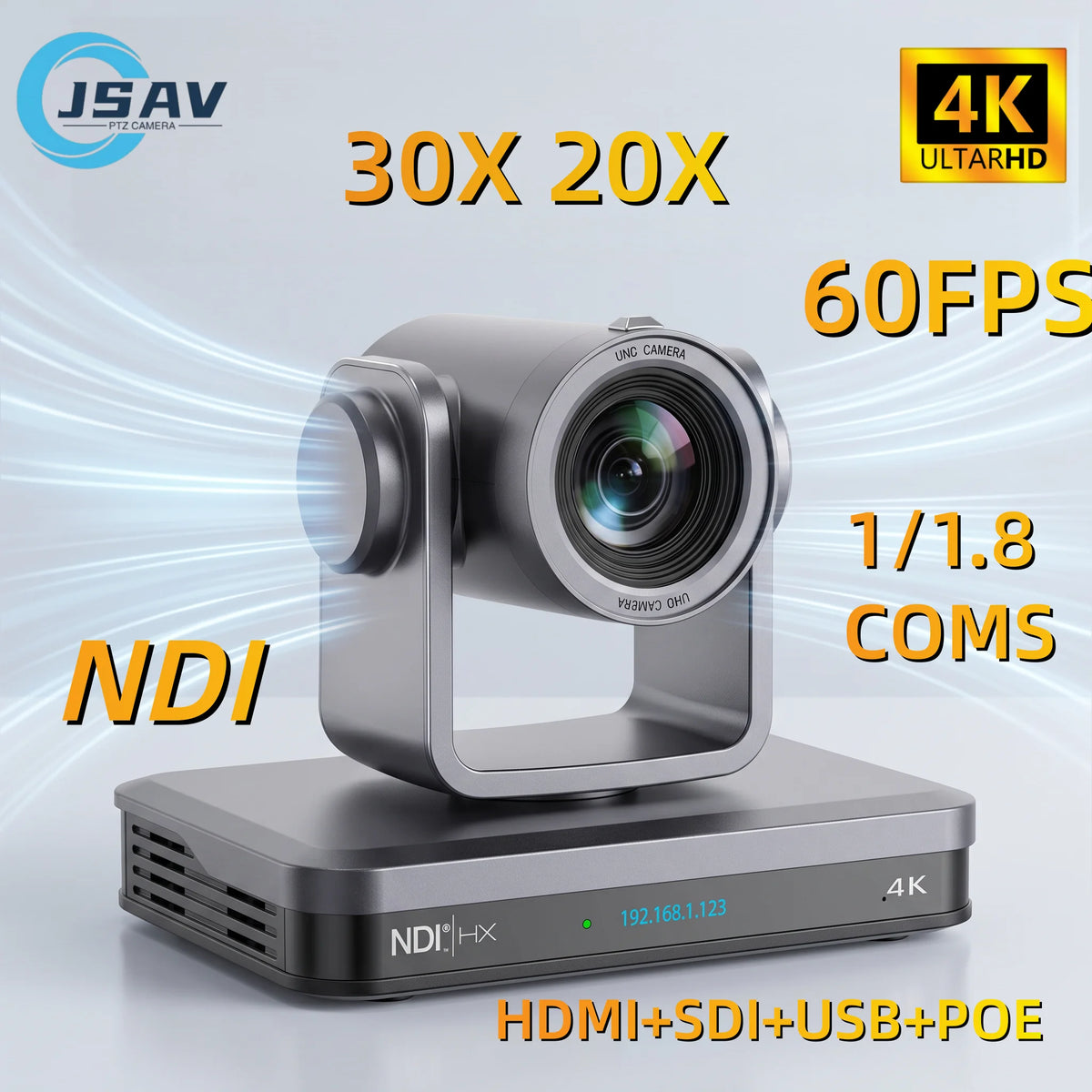

• True 4K Ultra HD Image Quality: Equipped with a 1/1.8-inch Exmor R CMOS sensor with 8.51 million effective pixels, it delivers ultra-high resolution of 3840×2160. It balances ultra-high definition and picture fluency to present delicate and realistic imaging effects.
• Low Noise & High-Purity Image: Adopts 2D noise reduction plus motion estimation-based 3D noise reduction algorithm, paired with a new-generation low-noise sensor to effectively suppress image noise and improve signal-to-noise ratio, ensuring clear and pure pictures in low-light and complex shooting environments.
• Professional Zoom & Wide Angle: Features 20x optical zoom, 16x digital zoom and a 58.7° horizontal wide viewing angle. It provides an extensive shooting range and flexible switching between long and short focal lengths to meet diverse shooting scenario requirements.

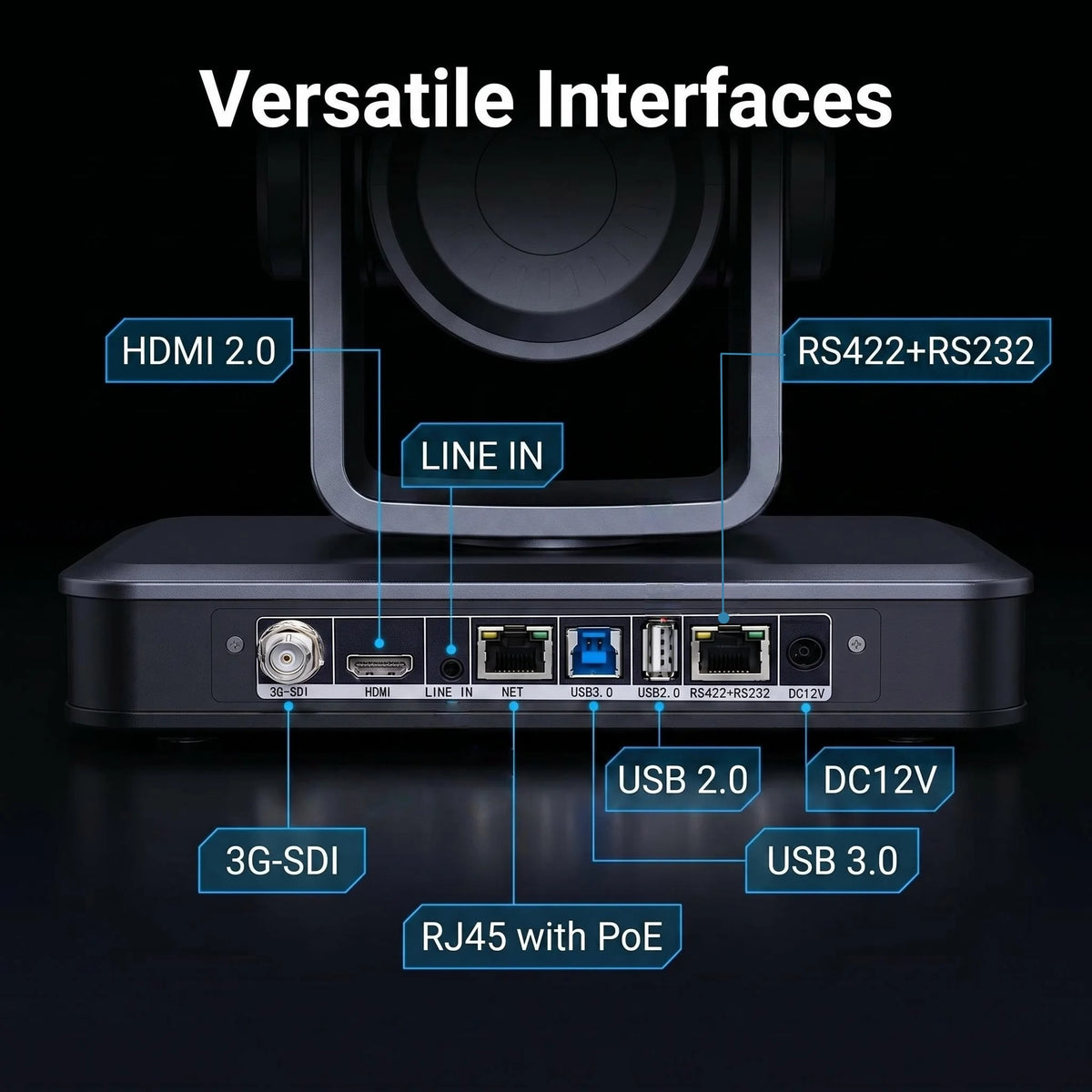

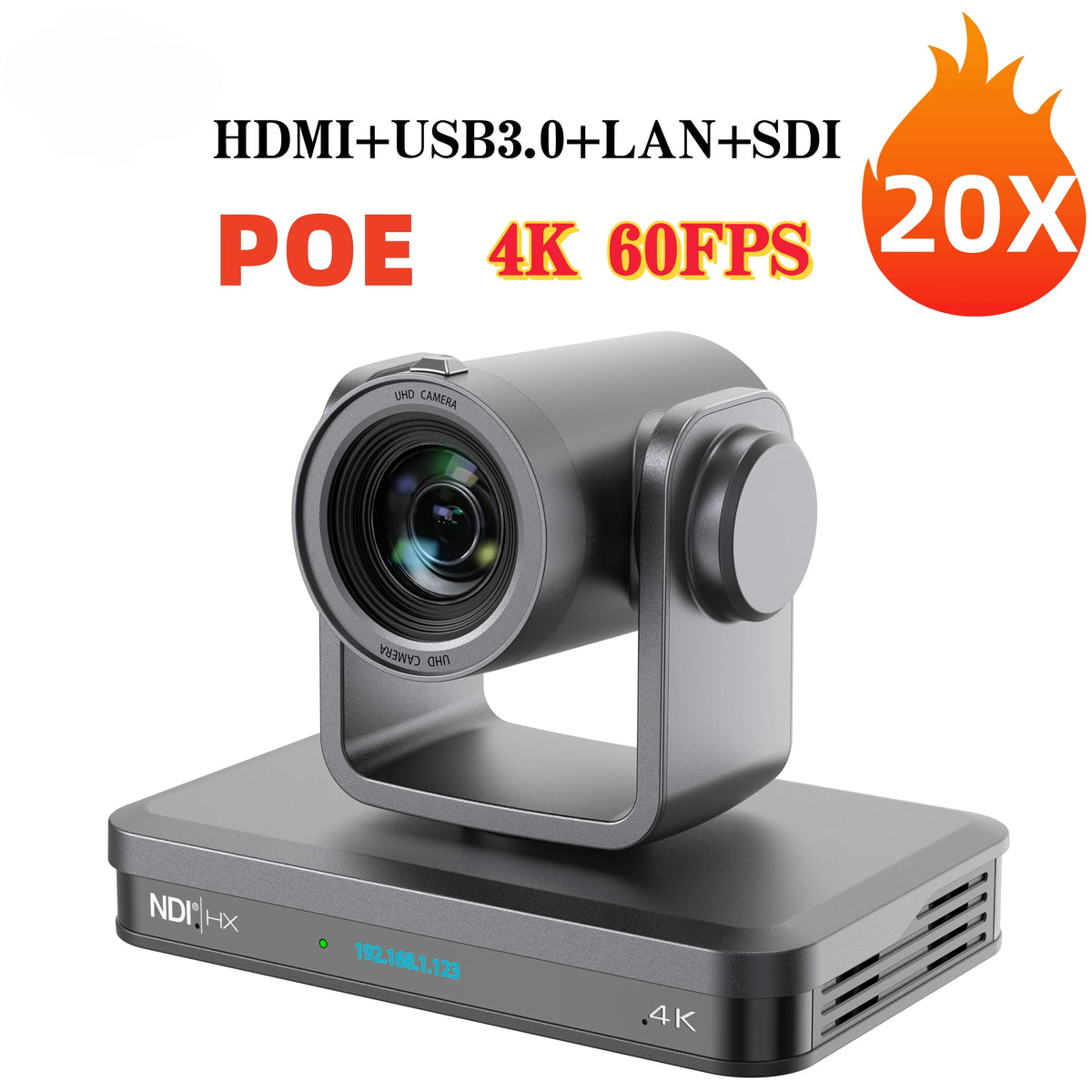

II. Multi-Dimensional Ultra HD Output Interfaces

• HDMI Output: Supports 4KP60 ultra HD output, compatible with full-frame-rate standards of 4K/1080P/720P, and realizes synchronous audio and video output.
• Network Output: 4KP60 ultra HD network video output, perfectly adapted to network live streaming and remote transmission scenarios.
• USB3.0 Output: High-speed 4KP60 video output with plug-and-play design, compatible with computers and acquisition devices.
• 3G-SDI HD Output: Professional broadcast-grade output, compatible with mainstream 1080P and 720P HD video formats.

III. Precise PTZ Control System

• Silent & Smooth PTZ Operation: Adopts precision motors and advanced control algorithms to ensure quiet, stable and fast PTZ movement. It can accurately locate target shooting positions and achieve dead-angle-free wide-range shooting.
• Mass Preset Positions: Supports 255 groups of PTZ preset positions, which can memorize horizontal, pitch and zoom parameters. Preset data is retained after power-off, and the preset cruise function enables efficient automatic shooting.

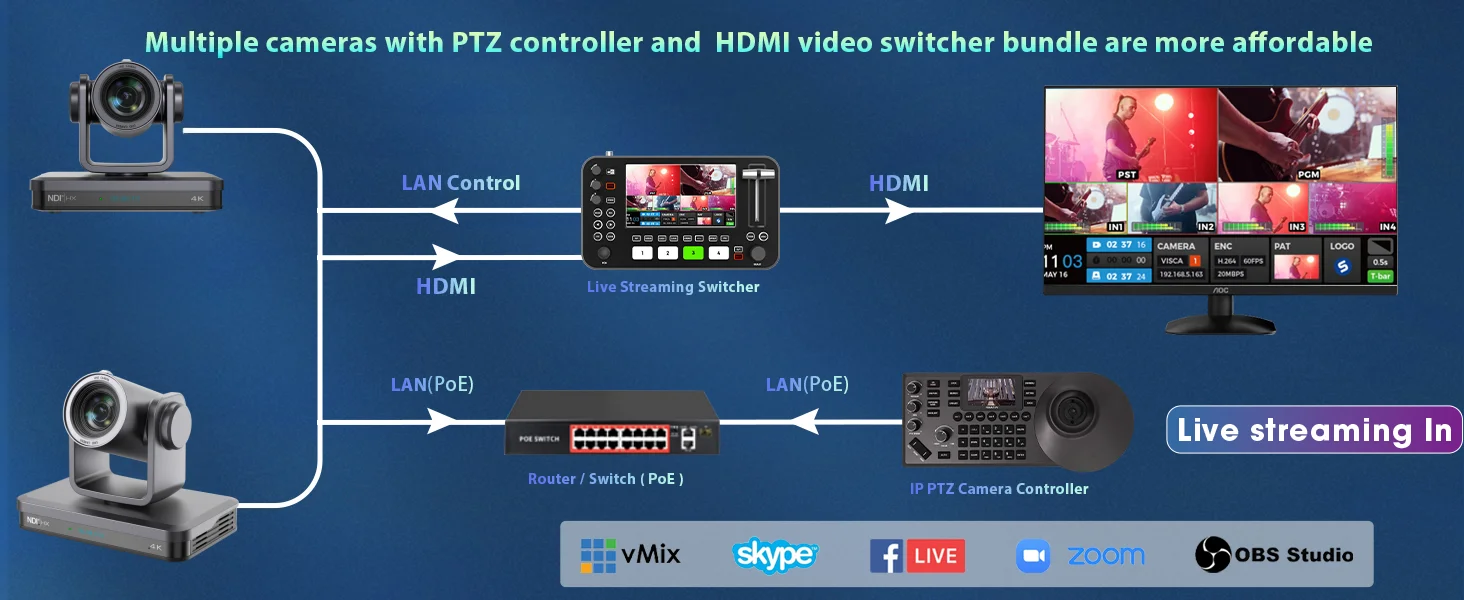

• Full Protocol Compatibility: Supports mainstream control protocols including VISCA, PELCO-D and PELCO-P with automatic protocol identification. It also adapts to multiple network protocols such as ONVIF, RTSP, RTMP and SRT, supporting RTMP push streaming and RTP multicast.

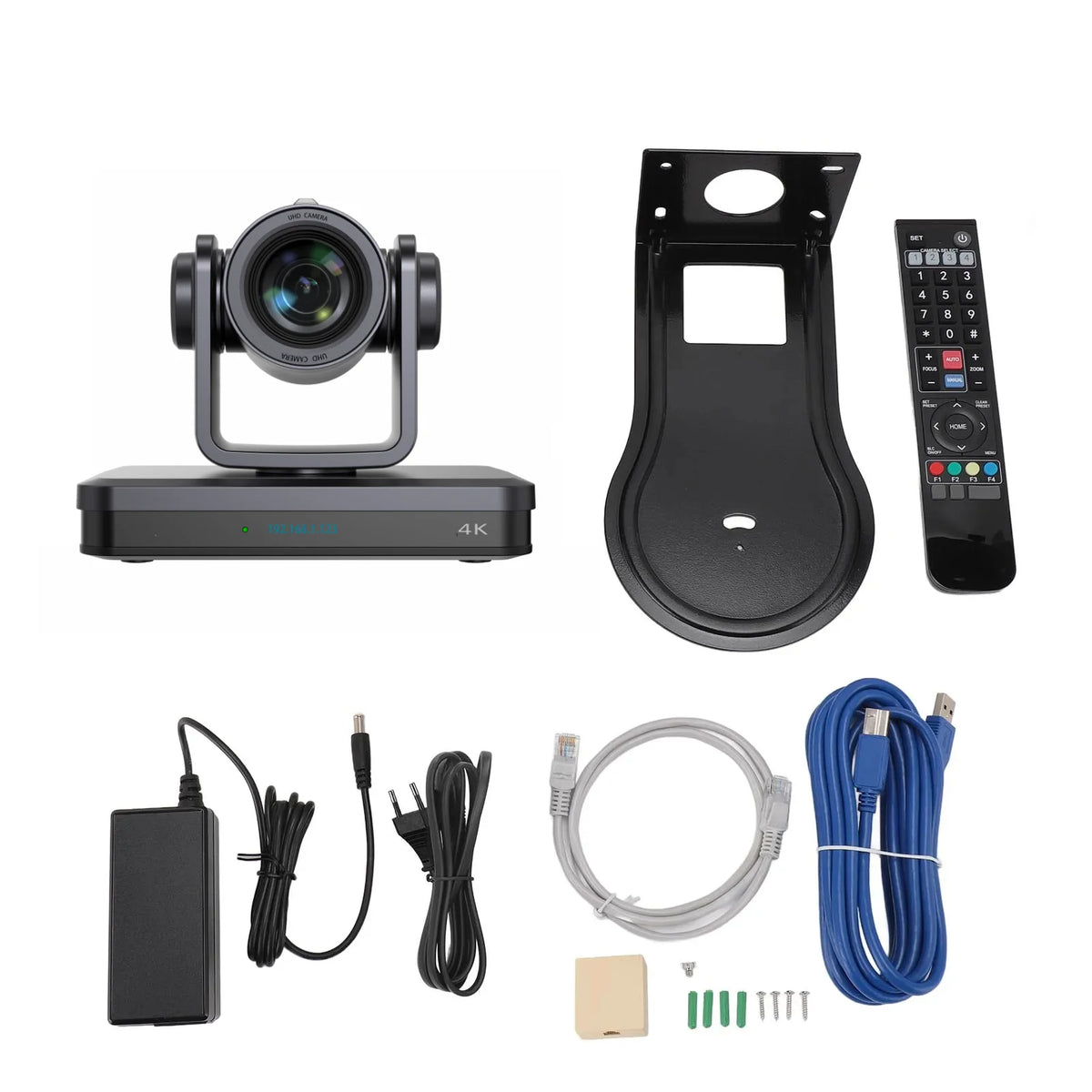

• Diversified Control Interfaces: RS422 is compatible with RS485; built-in RS232-IN and RS232-OUT interfaces support cascading expansion. Equipped with a multifunctional remote control for one-click parameter setting, PTZ control and menu adjustment.

IV. Intelligent AI Functions

• Intelligent AI Tracking: Built-in high-speed processor and exclusive advanced image processing and analysis algorithms. It supports real-time tracking and regional tracking modes, which can automatically lock and track targets according to different application scenarios.

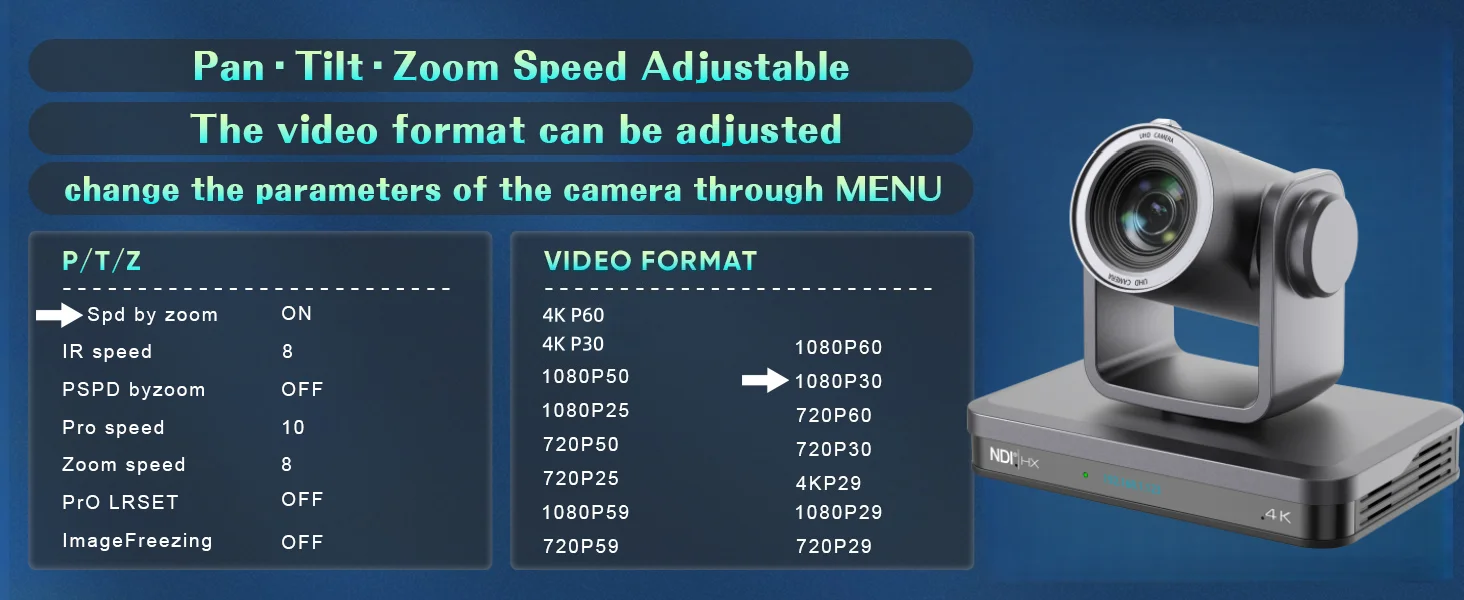

• Practical Extended Functions: Supports fog penetration and image freeze functions; equipped with Tally light and LED information display (showing IP address and resolution); built-in Chinese and English OSD menus for convenient remote switching and operation.

V. Optional Value-Added Functions

• Optional POE power supply function simplifies wiring and installation.
• Optional NDI|HX3 function adapts to professional broadcast live streaming scenarios.

VI. Wide Application Scenarios
